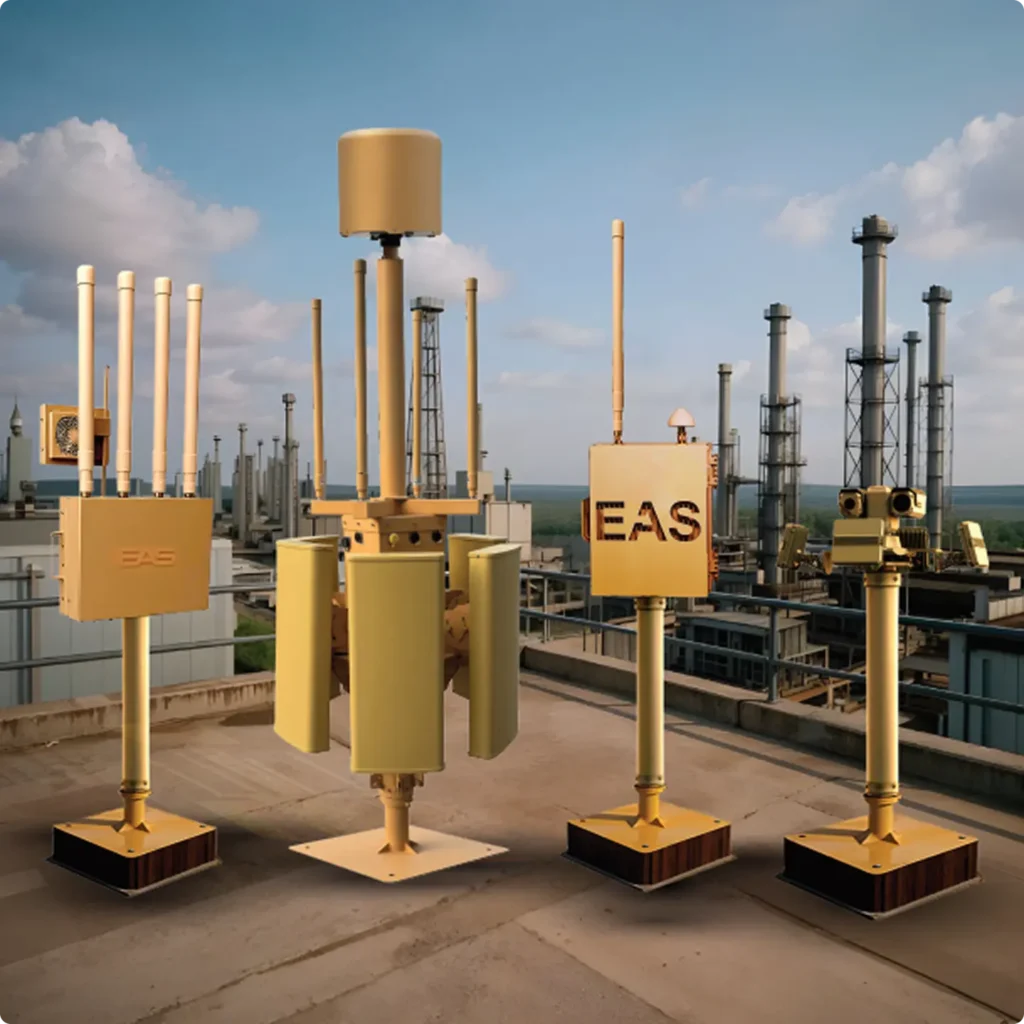

EAS DOME
EAS DOME is a modular stationary counter-UAV system that integrates radio frequency detection, radio jamming, GNSS spoofing, radar, as well as visual and thermal imaging surveillance sensors on a unified platform. Combined with edge computing and advanced analytics software, the system provides a comprehensive and reliable solution for rapid detection, accurate threat assessment, and effective neutralization of drones.
EAS DOME is a modular stationary platform that integrates all monitoring points into a unified system. Combining advanced sensors, artificial intelligence, and powerful countermeasures, it provides reliable protection against unmanned threats.
Key Features
Technical specifications
RF detection system
Detection range
5 км+ (до 7–10 км на открытой местности)
Диапазон частот
20–8000 МГц (полный диапазон)
Точность пеленгации
по горизонтали ≤3°, по вертикали ≤5°
RF jamming system
Диапазон частот
300–6000 МГц (5 независимых каналов)
Fixed suppression frequencies
1.2 GHz, 1.5 GHz, 2.4 GHz, 5.8 GHz
Suppression range
3 км; в зависимости от антенны и условий до 5–10 км
Suppression Zone
360°
Radar detection module
Radar radio frequency range
9.2 GHz – 9.5 GHz
Detection range (RCS: 0.01 m²)
5 km
Radar field of view
Horizon: 90°, Vertical: 55°
Max. number of tracked targets
Up to 200 (TWS mode)
Target update time
TWS: less than 6 sec, TAS: less than 0.5 sec
EOIR module
(optical-electronic and infrared)
Visible camera resolution
1920×1080 (FHD)
Focal length of the visible camera
6.5 – 312 mm
Visible camera zoom
48× optical zoom
IR camera resolution
640×512
Focal length of IR camera
75 mm
GNSS Spoofing Module
Навигационные системы
GPS, ГЛОНАСС, BDS, Galileo, NavIC, QZSS
Дальность воздействия
up to 3 km
Output power
20 W
