EAS-ADS «AIR SHIELD-1N»
The device is based on radio frequency (RF) technologies for detection and suppression of unauthorized drones.
It has a neat and integrated design with flexible deployment options such as mobile or fixed configurations.

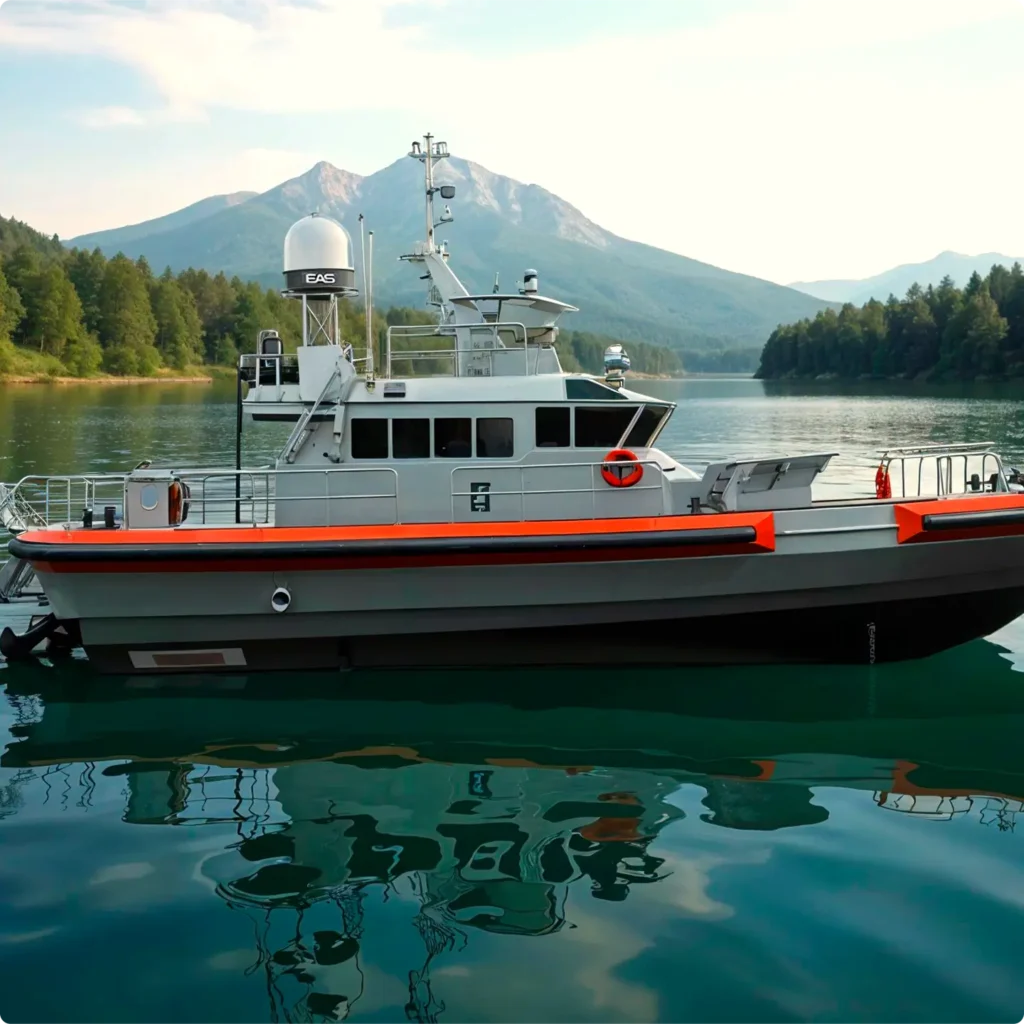

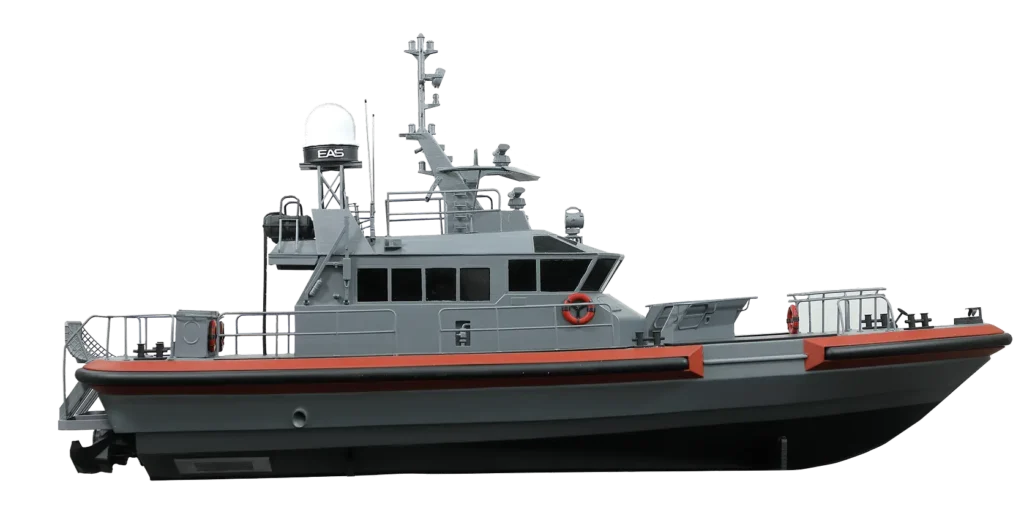

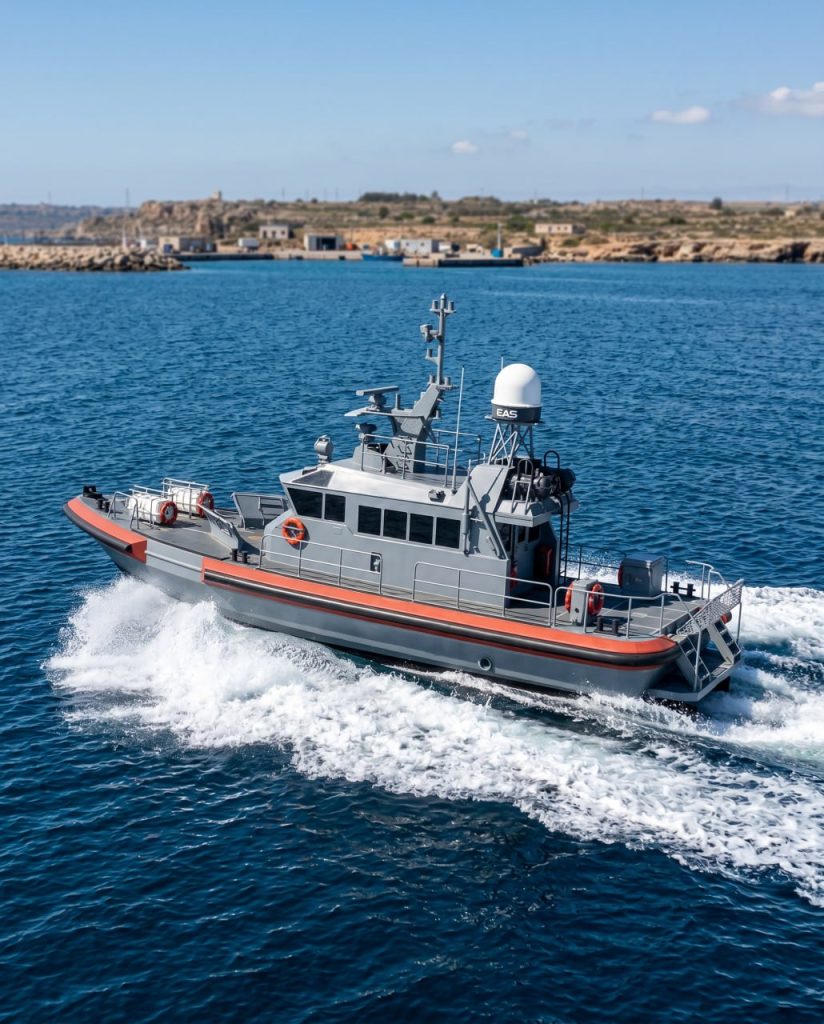

Detection and jamming is effective at a distance of 1 to 3 km. The system can be installed on mobile platforms such as vehicles, boats and other systems for universal deployment.
Key
functions
Technical specifications
jamming block
operating mode
Radio Frequency (RF) Suppression
target
Control channel and/or GNSS communication
frequency
433 MHz, 900 MHz, 1.2 GHz,
1.5 GHz, 2.4 GHz, 5.2 GHz,
5.8 GHz, independently or in combination
response time
4 s
operating mode
Directional / Omnidirectional
detection unit
target
Transmission signal
drone images
operating mode
Passive radio detection
Possibility of identification
DJI, DIY, FPV,
racing drone models
Detection range
Urban environment: 1.5–5 km
(Varies depending on
environment and drone model)
size
F600mm*H425mm
weight
25 kg
number of drones
20+ (simultaneously)
action scenarios
Want to know more?
about our technologies?
Contact us and we will find a solution for your task - from protecting objects to border protection.
